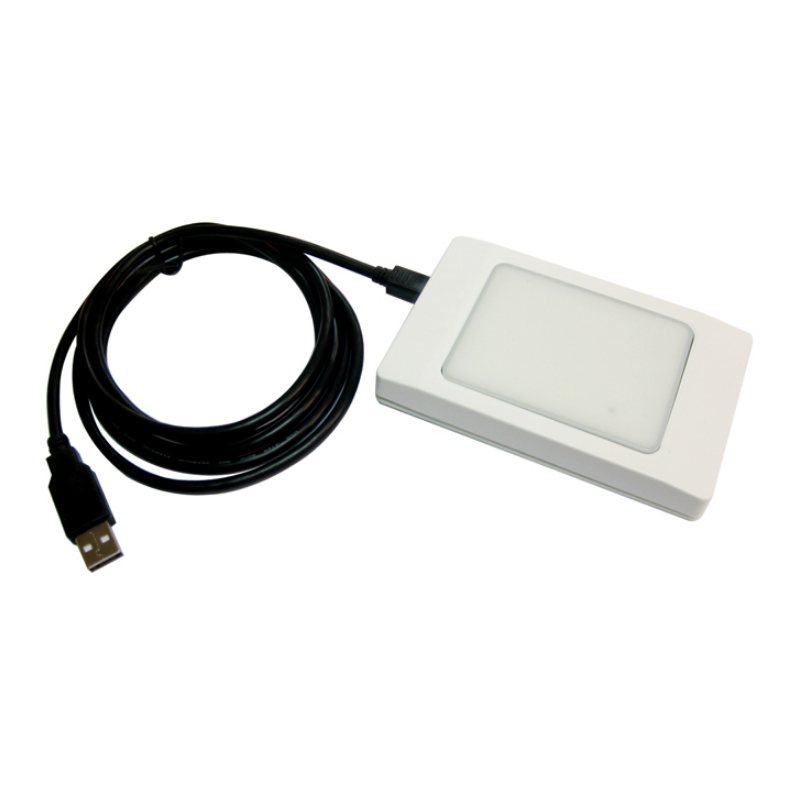

Dual Band RFID reader 125kHz, 13.56MHz, NFC, EM400x, Mifare. 8-10 characters Decimal/HEX. HID. DIP Switch. USB. Desktop

Dual Band RFID card reader for USB - Decimal/HEX
8-10 characters Decimal/HEX - 32/40bit
125 kHz, 13.56 MHz, NFC
125kHz: EM4001, EM4002, EM4200
Mifare: ISO 1443A/B/15693
HID - keyboard emulation
Reading distance: up to 10 cm
Supplied via USB
USB interface
ID format setting with DIP switches - see diagram
Hard copy form with the product
operating temp. -25° to +70°C
Dimensions: 88 x 56 x 18 mm

RFID-D5USB-D10
990.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

RFID-D5USB-D10 has indication in the form of sound and light respectively.
Can handle high humidity, so it is optimal for outdoor use.
RFID-D5USB-D10 is programmed with 4 DIP switches. See the yellow schedule on our website.
Is for EM 4001 and EM 4102 RFID TAG/card and Mifare and Desfire.

Driftstemperatur
-10 - +75°C
Forsyning
5VDC fra USB port
Frekvens
NFC / Mifare 13,56MHz, EM 400x 125kHz
Interface
USB
Læseafstand
5 - 19 cm afhængig af system og TAG størrelse
