RS232 tester with LEDs for visual control of RX/TX and control signals
RS232 signal tester
DB9 male/female connector
Tests: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS and RI
Standard RS232 DTE and DCE connection
Does not require power supply

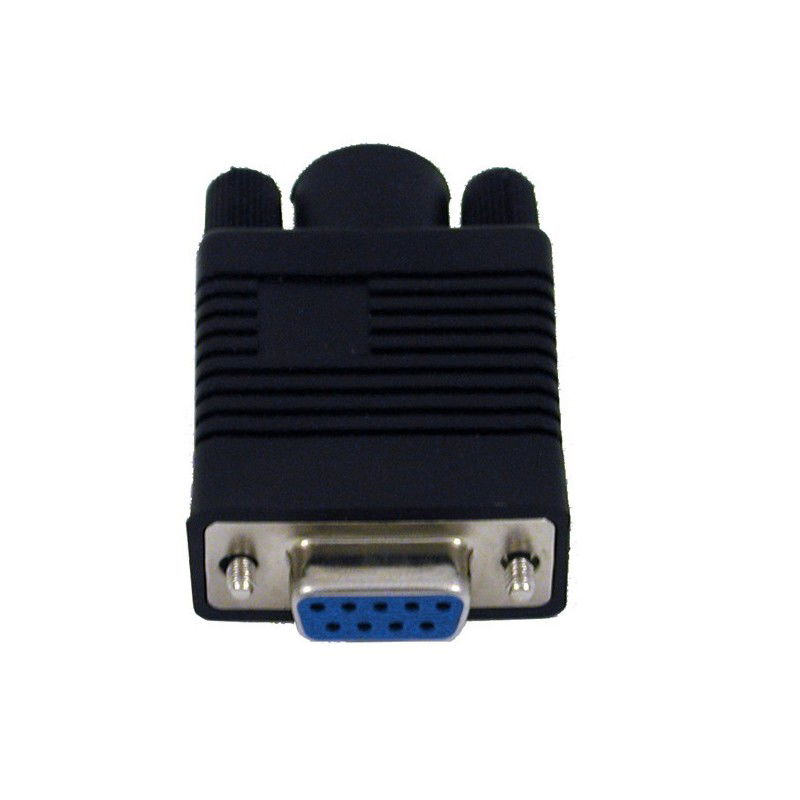

Loopback testare för RS232 med DB9 honkontakt
Testa den seriella porten fungerar eller om det är rätt port som händer på.
Enkla tester som används när felet finns på RS232-portar. Testaren gör en koppling mellan TX och RX, RTS och CTS, DTR och DCD / DSR. För att testa om porten kan skicka / ta emot program kan hyper terminal som kommer med Windows används.
RS232 testare med ben TX till RX, RTS till CTS och DTR till DCD / DSR.
Kräver ingen strömförsörjning.
RS232 signal tester
DB9 male/female connector
Tests: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS and RI
Standard RS232 DTE and DCE connection
Does not require power supply
Easy to use
DIP switch for disconnecting and connecting signal (easy to connect external cables/props)
Branch too high signal
Red for low signal
RS232 8 signals DCD, RXD, TXD,, DTR, DSR, RTS, CTS, RI.
