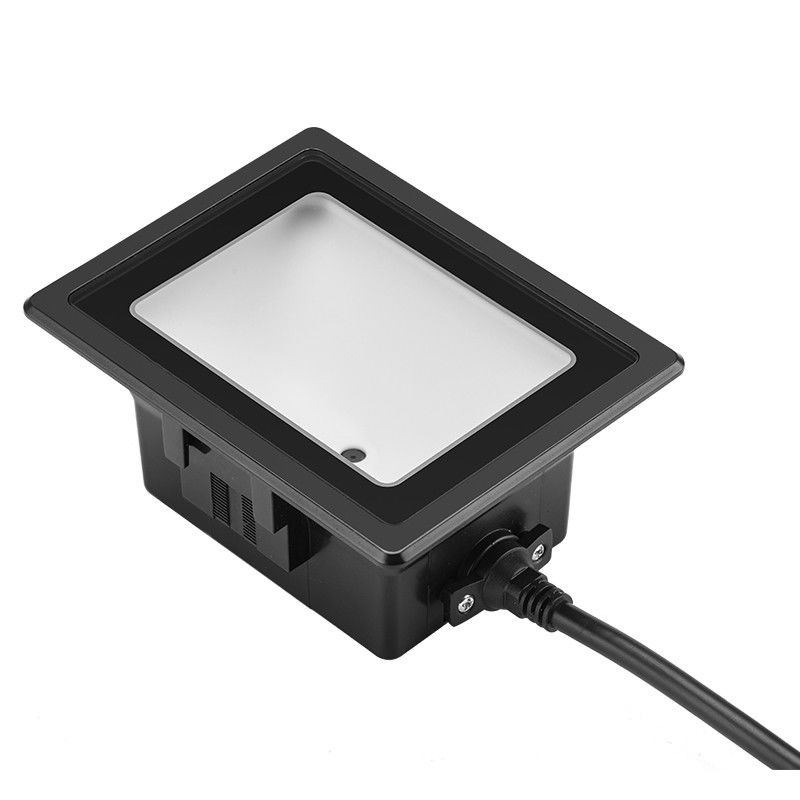

Industrial Panel Mount 1D and 2D (Barcode/QR) Scanner, IP66 tight, USB, white light, fast reading

Quick installation (no screws needed)

Can read QR and barcode from your phone's screen!

Supports most 1D and 2D formats

USB1.1, HID-KBW, HID-POS, Custom HID

RS232 (optional)

High speed

Choice of colored light when reading code

IP66-tight

90ms read speed

Reading distance: 0 to 11 cm

Summer

OS Support: Win XP/7/8/10, Android, Linux, Mac.

Operating temperature -20 to 70 degrees

Dimensions 101.5 x 78.5 x 48 mm (hole cutout 640x480 mm)

Print contrast min. 25%

5VDC with special power connector! ("-" is center, "+" is side)

BARCCD2D-IP66
2,005.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Super fast Barcode and QR scanner. 2 in 1 solution.

Dimensioner
101,5 x 78,5 x 48 mm (hul udskæring 640x480mm)
Forsyning
5 ~ 12VDC
Interface
USB eller RS232 (option)
IP-Tæthed
IP66
Læseafstand
0 ~ 11cm
Læsehastighed
90ms
Compositions
ABS
Opløsning
640 x 480
Stregkoder
1D og 2D
