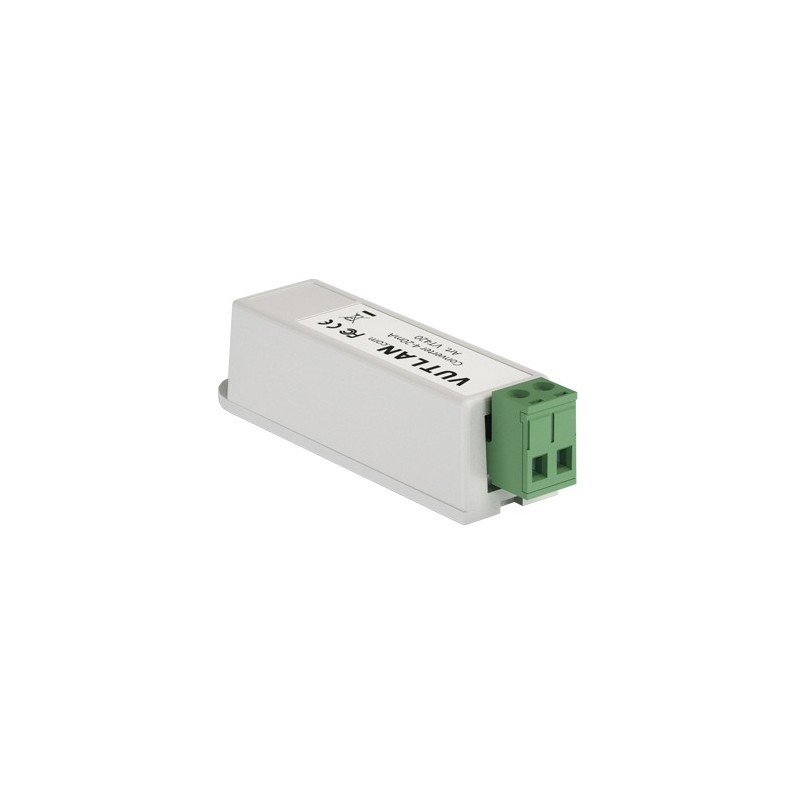

4-20mA Current Loop Converter

Compact converter for current measurement and data conversion for IP monitoring systems
Input Terminal Plug 2pins 5mm
Output Terminals RJ11 / RJ12
Power Consumption 100 mW
Dimensions 60×18×18 Mm
Weight 60 g

VTL100040
74.66 USD
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

The 4-20mA Current Loop Converter is designed for measuring constant current from various sensors and converting the data into a format suitable for IP monitoring systems. It features galvanic isolation of 1 kV between I/O, a maximum distance of 50 meters from the measuring unit, and a daisy chain capability up to 225 meters from the monitoring unit.

Dimensioner
(Length, Width, Height) 60×18×18 mm
Input
Terminal Plug 2pins 5mm
Output
Terminals RJ11 / RJ12
Weight
60 g
power consumption
100 MW
