With PoE

4 x 10/100 / 1000Mbit RJ45 not managed switch with PoE
2 x 10/100 / 1000Mbit RJ45 Uplink ports
PoE is 54VDC
PoE provides 30 Watts per port (4 ports)
Max. 55 Watts total PoE
Autodetekterer PoE devices
56VDC, 60 Watt - PSU included

Managed Industry switch to harsh environment
Cybersecurity SSHv2/TLSv1.2
Ethernet Ring Protection
e-Mark Certified (vehicles/ITS)
Can support 2.5Gbit SFP module
8 port industrial Gigabit switch, RJ45 with PoE+
Intelligent PoE
2 port SFP 100/1000/2500Mbps
Supply voltage: 12 - 48VDC / 7A
PoE power budget: 60W at 12V, 120W at 24V, 240W at 48V
Redundant power supply connection
IGMP snooping, MLD snooping
IEEE 1588 Time synchronization protocol
Modbus TCP real time (SCADA)
Extended temperature range from -40 to +75 °C
DIN rail or wall mounting
Dimensions: 152 x 107 x 77 mm

Powerful managed 18 port Industrial switch
Managed switch. 16 x RJ45 +2 x SFP
16 x 10/100/1000Mbit switch with PoE+ (36Watt)
Total PoE power is 320 Watt (dual DC input)
2 x 10/100/1000Mbit RJ45
2 x 100/1000/2500Mbit SFP slot
Supports 2.5GHz SFP module
IGMP snooping
MLD Snooping
DHCP relay / DHCP Server
Cyprus Security
ERPS Call. Fast Ring recovery less than 10ms
1588 Time Synchronization Protocol
Layer 2 switch
Temperature range from -40 to +75°C
Supply voltage: 48 - 56VDC - redundant input
Dimensions: 152 x 107 x 87 mm

Managed Industrial Gigabit switch. 24 x RJ45, 2 x 24
SFP ports PoE+, 30 watts per port
Total PoE power is 390 Watt
PoE voltage output: 54VDC 30W maximum.
24 x 10/100/1000Mbit RJ45
2 x 1000Mbit SFP slot
2 x uplink SFP or RJ45
Layer 2 switch
IGMP Snooping (Multicast Protocol)
Port mirroring
Operating temperature: -10 - +50°C
Supply voltage: 100 - 240VAC
Dimensions: 442 x 305 x 45 mm (1U)
Weight: 4.4kg

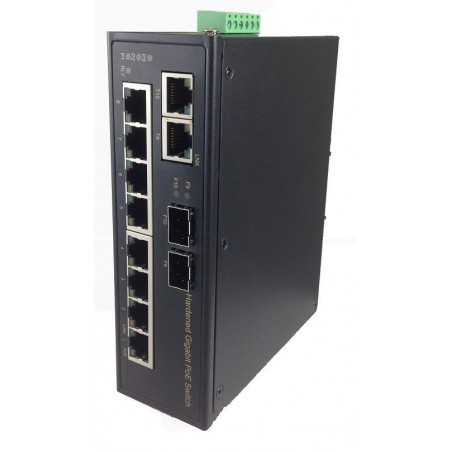

8 x RJ45 PoE + 36W Gigabit
2 x SFP 100/1000 Mbit
10K Jumb frames
2M Packet Buffer
16K MAC address table
-40 to + 75 ° C

8-port Unmanaged 10 / 100M + 2-port Gigabit RJ45
2 x 1000BASE-X mini-GBIC SFP combo interface
PoE + is 32 Watt
Total PoE power is 120 watts
IEEE 802.3af / to End-span
Each port provides 52VDC to PoE equipment
Auto deteketere PoE equipment
Provides power to the max. 100meter
Extended mode without PoE, the distance up to 250meter
Equipped with smart LCD
Normal, VLAN, Extend
Supply voltage: 100 - 240VAC
Dimensions: 280 x 180 x 44 mm (1U)

The 16-port 10/100Mbit + 2 Gigabit RJ45
2 x 1000BASE-X mini-GBIC SFP combo interface.
PoE + is 32 Watt
Max. PoE power is 300 watts
IEEE 802.3af / at End-span.
Each port provides 54VDC to PoE equipment.
Auto deteketere PoE equipment.
Provides PoE power to the max. 100meters.
extended mode without PoE, the distance up to 250meter.
Equipped with smart LCD.
Dimensions: 440 x 233 x 44 mm (1U)
Operating temperature: -10 - + 60 ° C
Supply voltage: 100 - 240VAC, 5A

Managed Industrial switch. 24 x RJ45, 4 x SFP
24 x 10/100/1000Mbit RJ45 ports PoE++
IEEE 802.3at/af/bt - Ultra PoE (90Watt) end/mid-span
Total PoE power is 775W
4 x 100/1000/2500Mbit mini-GBIC / SFP slots, Combo with 4 Gbit RJ45 SFP
10GB SFP
VLAN - IEEE 802.1Q tagged VLAN
VLAN (Q-in-Q) - IEEE 802.1ad
Protocol VLAN, Voice VLAN, Private VLAN, Management VLAN, GVRP
IGMP snooping v2 and v3
MLD snooping v1, v2
Port security for source MAC address filtering
DHCP snooping to filter unwanted DHCP messages
Dimensions: 440 x 300 x 44 mm (1U)
Weight: 4.4 kg
Supply voltage: 100 - 240VAC

16 x 10/100/1000Mbit RJ45
16 porte med PoE Ultra (75W per port)
4 100/1000BASE-X mini-GBIC/SFP slot
2 10Gbit SFP+ slot
RJ45 console interface til management og opsætning
PoE maks. er 400Watt, end-span og mid-span.
PoE power feeding op til 100 meter
Total PoE management
IGMP Snooping
MLD Snooping
Maks. 8 VLAN interface

5 x 10/100 / 1000Mbit RJ-45 with 4 ports with PoE +
PoE + is 30.8 Watt. PoE max 134 watts, end-span
Auto detects PoE equipment and protects against damage by non-PoE equipment
PoE up to 100 meters
Layer 2 switch with auto-negotiation
IP30 aluminum metal cabinet, DIN Fittings
DIN Rail and Wall Mount
48V DC Redundant Power Input
EFT Protection Up to 6kV for Power Line
6kV Protection on Ethernet Port
-40 to + 75 ° C & nbsp;

PoE++: 60W for each PoE port
PoE power budget is 120W
Unmanaged switch
IEEE 802.3at / of PoE compliant
Current protection: OVP, OCP, SCP
Compact design with wall-mounted capability
UL / CB certified external power supply
Power supply: 56VDC 2.1A
Per port PoE (Mode A, Mode B) On-Off Control by DIP Switch
Dimensions: 119 x 88 x 27 mm
Temperature: 0 - +40°C

5 port 10/100/1000 Switch with 4 poE ports
4 x PoE RJ45
1 x Uplink RJ45
& lt; 8W per PoE & Ethernet standard: IEEE802.3, IEEE 802.3u , IEEE802.3ab, IEEE802.3af / at
Power Supply: DC48V - 53V

5 Ports & nbsp; Switch with 4 PoE ports
4 x PoE RJ45
1 x Uplink RJ45
1 x SFP
Ethernet standard: IEEE802.3, IEEE 802.3u, IEEE802.3af / at
Power Supply: DC48V - 52V

Industrial 4 Port Gigabit Ethernet PoE Switch
4 x Copper Ports - 10/100 / 1000Mbit RJ45
Managed Switch
IP30 Cabinet
DIN Rail and Wall Mounting
Supply: 45-57VDC

Operating Temp. -20- 70 ° C

Managed Industrial switch. 24 x RJ45, 4 x SFP
24 Port ethernet switch with PoE+ (36Watt)
Total PoE power is 740 Watt
24 x RJ45 10/100/1000Mbit
POE standard: IEEE 802.3af/802.3at/802.3bt
4 x SFP 10Gbit / 1Gbit, 10GBASE-SR/SL SFP+ interfaces (Port-25 to Port-28)
128Gbps (non-blocking)
Auto generation of port configuration
MVR (Multicast VLAN Registration)
IGMP snooping
Dimensions: 440 x 300 x 56 mm (1.25U)
Weight: 5.4 kg
Supply voltage, 100 - 240 VAC

8 x 10/100 / 1000BASE-T RJ45 Auto-MDI / MDIX Ports
2 x 1000BASE-SX / LX / BX SFP Interface
8 POE Injector Ports with 802.3ay / of
PoE Standard 802.3at
60GB non-blocking
32Mbits Data buffer
IEEE 802.3X pause frame for duplex
IP30 aluminum
Din rail kit and wall mounting
Alarm relay 1A, 24V DC
2 x Digital output (DI)
2 x Digital output (DO) 24v DC, 100mA max
Dimensions: 72 x 107 x 152mm
Weight: 1684g & nbsp;
Supply: 48-56 V DC

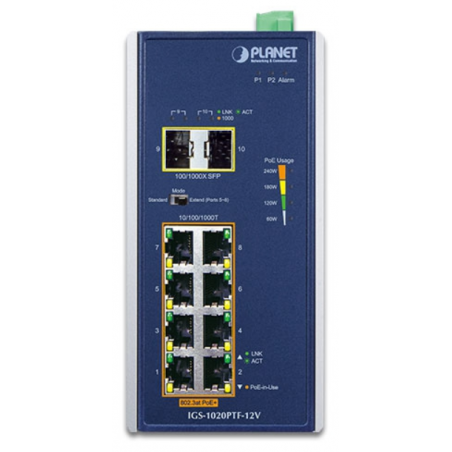

Managed switch with Gigabit ports
8 x 10/100 / 1000BASE-T RJ45 ports with PoE +
Up to 36 watts for each PoE port
Total PoE power is 240Watt
2 x 100 / 1000BASE-X mini-GBIC / SFP
IGMP Snooping (Multicast)
Operating temperature: -20°C to 70°C
Can be wall mounted, magnetic wall mounted or DIN rail mounted
Supply voltage: 48-58DCV 5.7A max input (PSU not included)
Dimensions: 180 x 140 x 24.4mm
Weight: 686 grams

Managed PoE Switch with 8 RJ45 and 4 SFP slot
8 x 10/100 / 1000Mbit with PoE ++ (95Watt)
PoE power budget is 360Watt (45Watt per port)
PoE utvidga mode - max. 160 - 200meter
2 x 100 / 1000Mbit SFP slot - for Single- and Multimode SFP module
2 x 10Gbit SFP slot
2 x Digital input
2 x Digital outputs (Open Collector)
IGMP Snooping Seite 128 VLAN interfaces
IEEE 1588v2 Precision Time Protocol (time  syncronising)
Operating temperature: -40 - + 75 ° C
Dimensions: 152 x 108 x 77 mm
Weight: 1, 2kg
Supply voltage: 48 - 56VDC (recommended min. 52VDC) 8amp

Top Grade Managed Poe++ switch - for large scale network
Managed switch, 24 x RJ45 with PoE++ (95W) on all ports simultaneously.
PoE power budget of 2280Watt. No compromise
Double plug-in power supplies
24 x RJ45 10/100 / 1000Mbit with PoE++
PoE extended to 200meter
2 x 10GBase-T slot for 10Gbit / 1 Gbit SFP Module Single Mode or Multimode
2 x 10GBase-SR / LR SFP + slots (combo with 2 x SFP / RJ45)
Layer 3 managed switch - Professional Grade
multi cast support
ERPS to Ring IP monitoring - recovery time less than 10ms
DHCP relay / DHCP Server
Supports Cisco ether-channel (static trunk)
Dimensions: 440 x 300 x 44 mm (1U)
Weight: 5,5kg
Operating temperature: 0 - +50°C

16 x RJ45 10/100/1000Mbit with PoE+
2 x 10/100/1000Mbit RJ45
2 x Gbit SFP slot
IP-Stacking up to 6 units
Gigabit TP, SFP and 10G SFP+ interfaces
Hardware stacking up to 6 units
Switch series stacked in a logical unit
Stacking architecture supports redundant Ring mode
IPv4 IGMP/ IPv6 MLD snooping v1, v2 and v3
IPv6 MLD snooping v1, v2
MVR (Multicast VLAN Registration)
Ethernet Ring Protection Switching
Supply voltage: 12 - 48VDC, 24VAC Redundant
Dimensions: 152 x 107 x 66 mm
Weight: 829g
Operating temperature: -40 - +75°C
DIN bracket
