Remote control / measuring via Ethernet and GSM

Intelligent 8 ports Power Distribution Unit
Justerbar sekventiel tænd / sluk
Samlet strømovervågning
Samlet spændingsindgang
Outputovervågning
Total brugt kWh
Effektfaktorgenkendelse
Driftstemperatur: Op til +55°C
8 x låsbar IEC-C13 netudtag
120 - 240VAC
Styr op til 3 PDU slaver fra en master
1 x C20 16Amp
Sensor for temperatur- og fugtighedsalarm
Alarm for vand via infrarød sensor
Røgdetektor
Automatiske alarmmeddelelser

GSM/3G/4G LTE

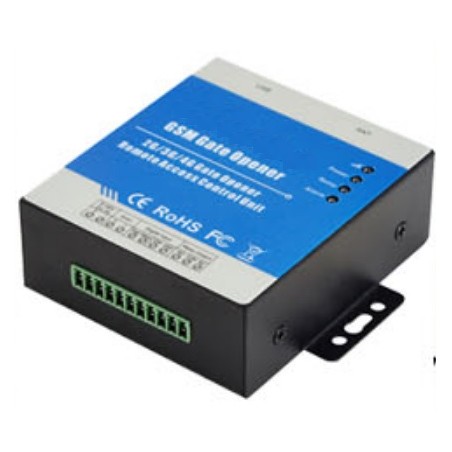

2 x digital input, compatible dry contact and wet contact, supports EOL connection;
2 x relay outputs (240VAC@3A)
One relay output can be switched on/off by sending an SMS text
The second relay output can be switched on for 4 minutes if inputs are activated
Supports input status recovery, external power failure alarm via SMS texts
Must be programmed with USB cable to PC
9~36VDC supply voltage and power source output for external device
Up to 3 users can receive alarm and daily report SMS
Up to 5 users can receive alarm calls;
Free SMS APP
Rechargeable backup battery and power monitoring alarm
Metal housing, IP30
Operating temperature: -10 - +70°C
Dimensions: 70 x 88 x 30 mm
Wall installation and DIN
Whip antenna with magnetic base 3m cable included

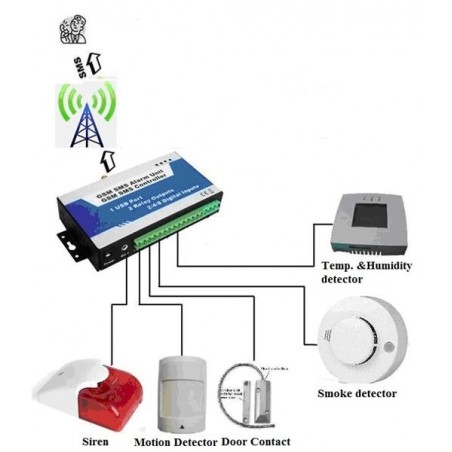

GSM / LTE alarm - 4G
Configuration via USB (Windows program) or SMS
2 x digital inputs with "dry contact" or "logic level" mode
2 x analog input from 0 to 60VDC, 10 bits
2 x relay output with NO / NC switches
1-Wire interface for 4 Teracom temperature and humidity sensors
Input can be navigated with alarm text etc.
SMS alarm - up to 5 numbers
Email alarm - up to 5 email recipients, SMTP with TLS support
1 relay can be activated with calls from up to 100 telephone numbers
Push mode - XML data is sent via HTTP Post to a remote server. Server response may include relay setup.
MQTT 3.1.1 support
Firmware update "on air"
Supply voltage: 8 - 32VDC, 2Watt - additional PSU
Dimensions: 109 x 65 x 32 mm
Weight: 152g

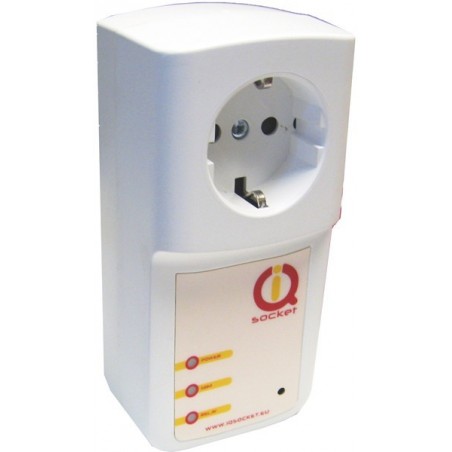

2 x 230VAC power relay /16A – resistive load.
2 x DC switched outputs up to 40VDC/6A, also as PWM for LED, FAN, etc.
2 x independent inputs: 230VAC and up to 24VAC/24VDC, SMS alerts for power failure
SIM card and SD card
Backup battery (not included) as an option – Li-Ion 3.7V (14500)
Switch appliances on and off with SMS messages
GPRS M2M function, TCP/IP Get to directly send input status to Server
Get XML status from server to set device outputs.
Scheduled automatic switching on and off of appliances
Sends power failure warning and recovery.
Restarting appliances, such as servers.
Monitoring of 2 x A/D inputs AC/DC voltages with autodetect
4 x digital inputs DIN1, DIN2, DIN3, DIN4 for DC voltage.
Universal bus (1-wire) for temperature and humidity sensors.
Thermostat function.
Alarm function: Temperature alarm, Humidity alarm, A/D limits, DI change
Alarm in case of jamming of a GSM signal.
Up to 12 alarm numbers, each can be set for different events
Up to 1000 authorized users and 2 administrator numbers.
Bluetooth
All inputs are SO compatible

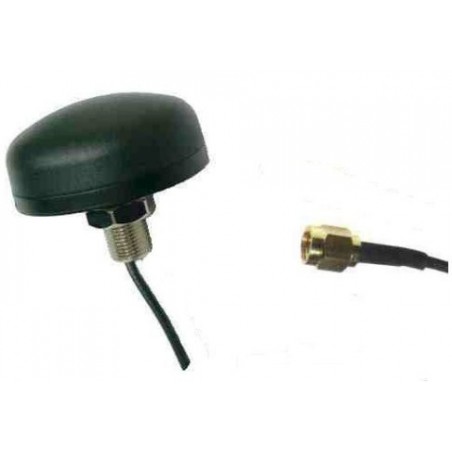

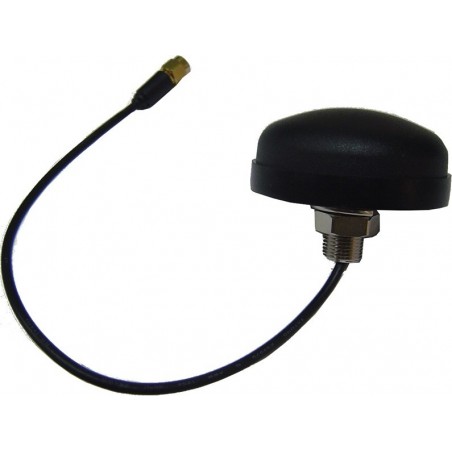

Vandal-proof and waterproof dome antenna
The LTE band 700-2700MHz (including GSM, 3G and 4G)
VSWR: <=1.5
Passive gain: 7-8 dBi
Polarization: Vertical
Nominal power: 50W
Input impedance: 50 Ohm
Cable length: 1.5 meters
Cable type: RG174
Connector type: SMA male
Weight of antenna: 57g
360° Omnidirectional
Center hole mounting

Event and schedule controlled switching 230VAC/10A
Accurate current measurement
Input for 2 sensors - temp/humidity, pressure
RJ45 to Ethernet
NTP function
Power port on/off via HTTP(S), SNMP, ModbusTCP, Telnet, SSH, MQTT
1-channel watchdog
Power port assigned to Watchdog (ICMP/TCP), auto reboot starts
Power consumption measurement (kwH) with 2 energy counters: one counter counts consistently, the other counter can be reset
Measurement of current (A), voltage (V), active power (W), apparent power (VA) and reactive power (VAr)
Measurement of differential current type A (mA)
Dimensions: 120 x 65 x 53 mm

CPU: 720Mhz/ 4 Core/2GB/Linux v.5.10
10/100 ethernet connection
2 x USB to USB camera, USB FLASH, USB HUb
8 x Analog ports
32 x Digital inputs
8 x Isolated digital outputs max. 24Vdc, 15mA
2 x Relay (NC NO COM) max. 10A for AC, 9~30V for DC voltage
LTE slot modem (modem purchased separately)
1 x Audio-Video output & input
SBNP v1, v2c, v3
OpenVPN, SSL, HTTPS
DHCP, HTTP, DynDNS, SMTP, RADIUS, Syslog, NTP server, HTTP request
API
Notification E-mail, phone call, SNMP, WEB to SMS, SMS Link
Logging SD, USB Flash, E-mail, FTP
power supplies single/redundant 24-48Vdc, 230Vac (contact sales regarding versions)

1-Wire temperature / humidity sensor
3 wires. +3.3 - 5.5VDC, Gnd, Data (yellow)
Temperature: -40 - + 80°C
Humidity: 0 - 99%RH
Temp: +/-0.5°C
Humidity: +/-3%RH
Repeatability: ±1%RH, ±0.2℃

Supports optional choice of ports from 8 - 12 - 16 - 20 - 24 ports.

The Current changes with the various models 16 - 32 A.

Current and voltage (total input) measurement;

Built in temperature and humidity sensor

Embedded technology, support Java, web browsing;

Two level values of warning and overload can be set;

LED indicates the power supply status of each switch;

LED digital display shows the current voltage and current values;

Provide local operation query button of PDU device;

Built in lightning protection circuit, anti voltage surge circuit, effective protection of the server;

Water detector with normally closed relay output
Supply voltage: 5VDC / 10mA
Relay contact: max. 30VDC/500mA
Red: +5VDC
Black: GND
Green: Relay contact
White: Relay contact
REMEMBER: Relay contact opens when water is removed.

CPU QuadCore Cortex A72 (ARM v8) 64 bits SoC 1.5GHz
RAM 4GB LPDDR4 standad (1/2/8 optional)
32GB EMMC Flash Memory
1x Micro HDMI
2x USB 3.0, 2x COM (1xRS-232/422/485, 1xRS-232/485)
RTC : Real Time Clock
1x Digital Input Dry(open/close)/Wet(0-3V/10-30V) contact
1x Digital Ouput (120VAC @0.5A, 240VAC @0.25A, 30VDC @1A)
DC 9~32V input DC Jack or Terminal Input

GSM/LTE alarm - 4G - Global version
Supports all LTE frequencies
Configuration via USB (Windows program) or SMS
2 x digital inputs with "dry contact" or "logic level" mode
2 x analogue input from 0 to 60VDC, 10 bits
2 x relay output with NO/NC contacts
1-Wire interface for 4 Teracom temperature and humidity sensors
Input can be navigated with alarm text etc.
SMS alarm - up to 5 numbers
Email alarm - up to 5 email recipients, SMTP with TLS support
1 relay can be activated with calls from up to 100 phone numbers
Push mode – XML data is sent via HTTP Post to a remote server. Responses from server may contain relay setup.
MQTT 3.1.1 support
Firmware update "on air"
Supply voltage: 8 - 32VDC, 2Watt - purchase PSU
Dimensions: 109 x 65 x 32 mm
Weight: 152g

Global 4G LTE Controller, logger and alarm
Supports all LTE frequencies
Setup via USB, SMS and HTTP API
USB setup - use USB cable with Mini B male
2 digital "dry contacts". High on contact
2 analog inputs, 0 - 10VDC or 4-20mA input (10bit)
4 relay outputs, COM, NO and NC
1-Wire input for up to 8 Teracom sensors
1 x RS485 for max. 8 MODBUS RTU sensors
Data logger with 70,000 logs
Upload data to HTTP/HTTPS Post in XML/JSON
SMS alarm and Email alarm to 5 recipients
Push mode – XML data is sent via HTTP Post to a remote server. Responses from server may contain relay setup.
10 to 28VDC, 370mA @ 12VDC - additional PSU
Dimensions: 158 x 119 x 34 mm
Weight: 470g
Temperature: -20 - +55°C
