Injector

A PoE (Power Over Ethernet) injector is used as a power supply between e.g. a Router and other network device, e.g. a switch. That way you won't have to add additional units, making installation and setup easier. At DANBIT we have a larger selection of PoE injectors, splitters and switches. We offer anywhere from 12V to 48V and up to 24 ports.

See the selection of our PoE Injectors below.

PoE Injector ⇒ Wide range of PoE injectors ⇒ Danbit

Injector

There are 25 products.

Products per page:
25 50 75 100
Sort by:
Relevance Name, A to Z Name, Z to A Price, low to high Price, high to low
Showing 21-25 of 25 item(s)

Active filters

2 x PoE+ injector 2 x PoE +...

2 x PoE+ injector 2 x PoE + PSE and 2 x LAN. Gigabit. Mid-Span injector 802.3at. 2 x 36watt. 12 - 56VDC input

2 Ports Poe Injector provides 2 x 36Watt for PD equipment
10/100/1000 Mbit
pin 4/5 (+), pin 7/8 (-)
4 x RJ45 (2 with data and 2 with data + PoE for equipment)
supply voltage: 12 - 56VDC
Power Budget is 60 - 72 Watt
Dim: 105 x 70 x 30 watts
Weight: 280g
Operating temperature: -40 - + 75 ° C
DIN mounting

Price 1,190.00 DKK
Product code: ETH-POE2+12-56
Physically in stock
Quick view
    • 4-Port Multi-Gigabit...

    4-Port Multi-Gigabit 802.3bt PoE++ 90Watt Injector Hub. Power budget is160 Watt. 54VDC PSU included

    4 x 10/100/1G/2.5G/5GBASE-T Gbit RJ45 data input
    4 x 10/100/1G/2.5G/5GBASE-T Gbit RJ45 data + PoE output
    100~240VAC, 3.33Amp PSU with DC 52V~54V power output
    Complies with 802.3bt PoE Plus Plus end-span and mid-span PSE
    Backward compatible with IEEE 802.3at PoE Plus end-span/mid-span PSE
    Up to 4 IEEE 802.3at/IEEE 802.3bt PoE devices powered
    4 x PoE ports with 90-watt 802.3bt PoE++ type 4 PSE or 95-watt PoH PoE injector function
    4 x PoE ports support 802.3at end-span/mid-span PoE+ 36-watt injector function
    DIP switch for 802.3bt, PoH and Force mode selection
    Auto detects if devices can be PoE powered (PD)
    Circuit protection prevents power interference between ports
    Forwards both Ethernet data and PoE power to remote device over a 100-meter distance
    EEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet., IEEE 802.3ab Gigabit Ethernet
    IEEE 802.3bz 2.5G/5GBASE-T, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
    IEEE 802.3bt Power over Ethernet Plus Plus
    Dimensions: 94 x 70.3 x 39.2 mm
    Weight: 275g
    Enclosure: Metal case



    Price 2,480.00 DKK
    Product code: ETH-POE4GH++
    On the way in
    Quick view

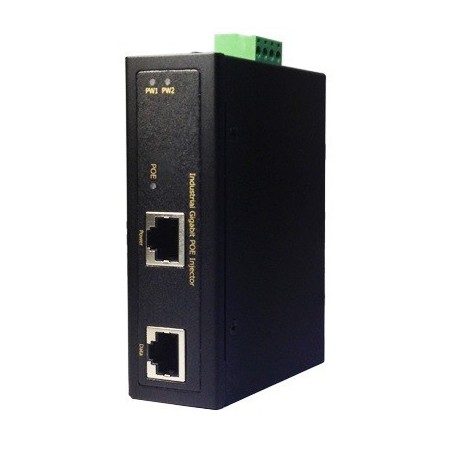

    • PoE Gigabit 95Watt Injector...

    PoE Gigabit 95Watt Injector PoE++, Output voltage 54VDC, Supply 12 - 54VDC, 6A. DIN

    PoE++ power supply via Ethernet cable, up to 95 Watt
    LAN without PoE in, gives LAN with PoE out
    PoE++ 54VDC/95W
    Mid-span and End-span give 95 Watts
    For 100/1000/2500/5000Mbit networks.
    PoE power output DC 24V~54V input: Max. 89.5W@1m cable, Max. 75W@100m cable
    PoE power output DC 12V input: Max. 60W@1m cable, Max. 52W@100m cable
    Temperature range: -40 - +75°C
    Dimensions: 135 x 88 x 32 mm
    DIN installation
    Powersupply input from 12 - 54VDC

    Price 1,920.00 DKK
    Product code: ETH-POE54-95W
    On the way in
    Quick view
