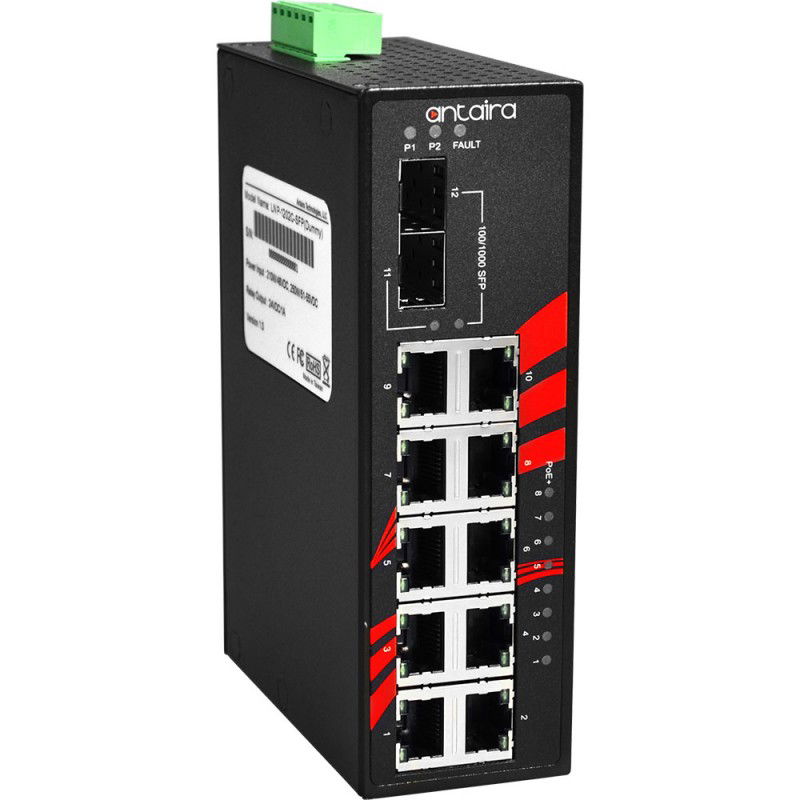

12-Port industrial PoE+ Gigabit unmanaged switch

8 x 10/100/1000Tx RJ45 (30W/port)
2 x 10/100/1000Tx RJ45
2 x 100/1000 SFP porte
Auto MDI/MDI-X Funktion
Store-and-Forward Switching Architecture
24Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
UL Class I, Division 2 Certified
Strømforsyning: 48~55VDC
Indbygget relæ Output til Power Failure
IP30 Rugged Metal Case Design
DIN-Skinne og Væg montering
Driftstemperatur STD: -10° to 70° C

ANR-LNP-1202G-SFP
6.976,00  DKK
Ekskl. moms
Antal
På vej ind

  • Download PDF
  • file_download Downloads
  • live_help Stil et spørgsmål
Buffer
7,926pps (default)
Certifications
FCC, CE, UL 61010-1, UL 61010-2-201, UL Class 1 Division 2, ISA 12.12.01
Chok/Vibration
IEC60068-2-32, IEC60068-2-27
Dimensioner
46 x 99 x 142 mm (W*D*H)
Driftstemperatur
STD: -10° to 70°C
Ethernet
10*10/100/1000Tx RJ45 (w/8*PSE: 30W/Port)
Fiber
2 x 10/100/1000 SFP Slot
Forbindelse
1 removable 6-contact terminal block
Luftfugtighed
5% to 95%, (non-condensing)
Materiale
Metal, IP30 protection
Montering
DIN-skinne og væg montering
Protokol
CSMA/CD
Standarder
IEEE 802.3 10BaseTx Ethernet IEEE 802.3u 100BaseTx Fast Ethernet IEEE 802.3ab 1000BaseTx IEEE 802.3z Gigabit Fiber IEEE 802.3at PoE+
Strømforbrug
10 Watts Full load w/PoE 215W@48V / 255W@51~55V
Strømforsyning
48-55VDC
